关于我们

自2010年以来，苏州笃正电子科技有限公司的工程师团队致力于被动元件小型化研发领域，先后推出合金电阻和一体成型T-core电感，来满足不同领域客户的需求。产品线包括汽车、5G电信、工业、电源管理、以及消费类电子产品等关键领域。
公司拥有深厚的研发技术和成熟的自动化生产流程，目标朝向成为技术领先的被动元器件专业制造供应商。

Since 2010, the engineering team of Suzhou Duzheng Electronic Technology Co., Ltd. has been committed to the research and development of passive component miniaturization. They have successively launched alloy resistors and integrated T-core inductors to meet the needs of customers in different fields. The product line includes key areas such as automobiles, 5G telecommunications, industry, power management, and consumer electronics. The company has profound research and development technology and mature automated production processes, with the goal of becoming a leading passive component professional manufacturing supplier.

新能源汽车

5G电信

工业设备

电源管理

产品中心

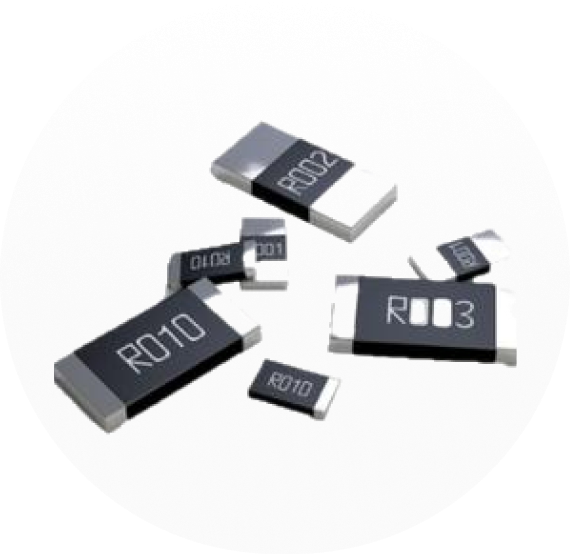

合金电阻是一种采用合金材料作为电流介质的电阻，具有以下特点：

**低阻值**：合金电阻的阻值通常较低，适合用于大电流的场合。
**高精密**：合金电阻的精度较高，能够提供稳定的电阻值。
**低温度系数**：合金电阻的温度系数较低，能够在不同温度下保持较稳定的电阻值。
**耐冲击电流**：合金电阻能够承受较大的瞬时电流冲击，不易损坏。
**大功率**：合金电阻能够承受较大的功率，适合高功率应用。

应用领域

**电流采样**：通过测量电阻两端的电压降来间接测量电流。
**短路保护**：在电路中作为限流元件，防止短路时电流过大损坏其他元件。

主要应用产品

**电池保护板**：用于监测和保护电池充放电过程中的电流。
**电源类**：用于电源管理电路中的电流检测和保护。
**变频器**：用于电机控制中的电流反馈和保护。
**灯具**：用于LED驱动电路中的电流控制。
**电机**：用于电机驱动电路中的电流检测和保护。
**行动装置**：如智能手机、平板电脑等便携设备中的电源管理。
**汽车**：用于汽车电子系统中的电流检测和保护。
**电脑**：用于主板、电源等电路中的电流检测和保护。
**电视**：用于电源板和背光驱动电路中的电流检测和保护。

工作原理

合金电阻由于金属的导电率强，能够准确反映电路中的电流变化。通过测量电阻两端的电压降，可以反馈电路中变化的电流，从而进一步控制或影响电流的变化。

总结

合金电阻因其优异的性能，在电子、电气产品中扮演着重要角色，特别是在需要高精度电流检测和保护的场合。

Alloy resistors are a type of resistor that uses alloy materials as the current medium. They feature the following characteristics:

**Low Resistance Value**: Alloy resistors typically have low resistance values, making them suitable for high-current applications.
**High Precision**: Alloy resistors offer high precision, providing stable resistance values.
**Low Temperature Coefficient**: Alloy resistors have a low temperature coefficient, allowing them to maintain stable resistance values across varying temperatures.
**High Surge Current Tolerance**: Alloy resistors can withstand large instantaneous current surges without damage.
**High Power Handling**: Alloy resistors can handle high power, making them suitable for high-power applications.

Applications

**Current Sensing**: Measuring the voltage drop across the resistor to indirectly measure current.
**Short-Circuit Protection**: Acting as a current-limiting component in circuits to prevent damage from excessive current during short circuits.

Key Application Products

**Battery Protection Boards**: Used for monitoring and protecting current during battery charging and discharging.
**Power Supplies**: Used for current detection and protection in power management circuits.
**Inverters**: Used for current feedback and protection in motor control.
**Lighting**: Used for current control in LED driver circuits.
**Motors**: Used for current detection and protection in motor drive circuits.
**Portable Devices**: Such as smartphones and tablets, for power management.
**Automotive**: Used for current detection and protection in automotive electronic systems.
**Computers**: Used for current detection and protection in motherboards and power supplies.
**Televisions**: Used for current detection and protection in power boards and backlight driver circuits.

Working Principle

Due to the high conductivity of metals, alloy resistors can accurately reflect current changes in a circuit. By measuring the voltage drop across the resistor, changes in circuit current can be fed back, enabling further control or influence over current variations.

Summary

Thanks to their excellent performance, alloy resistors play a crucial role in electronic and electrical products, particularly in applications requiring high-precision current detection and protection.

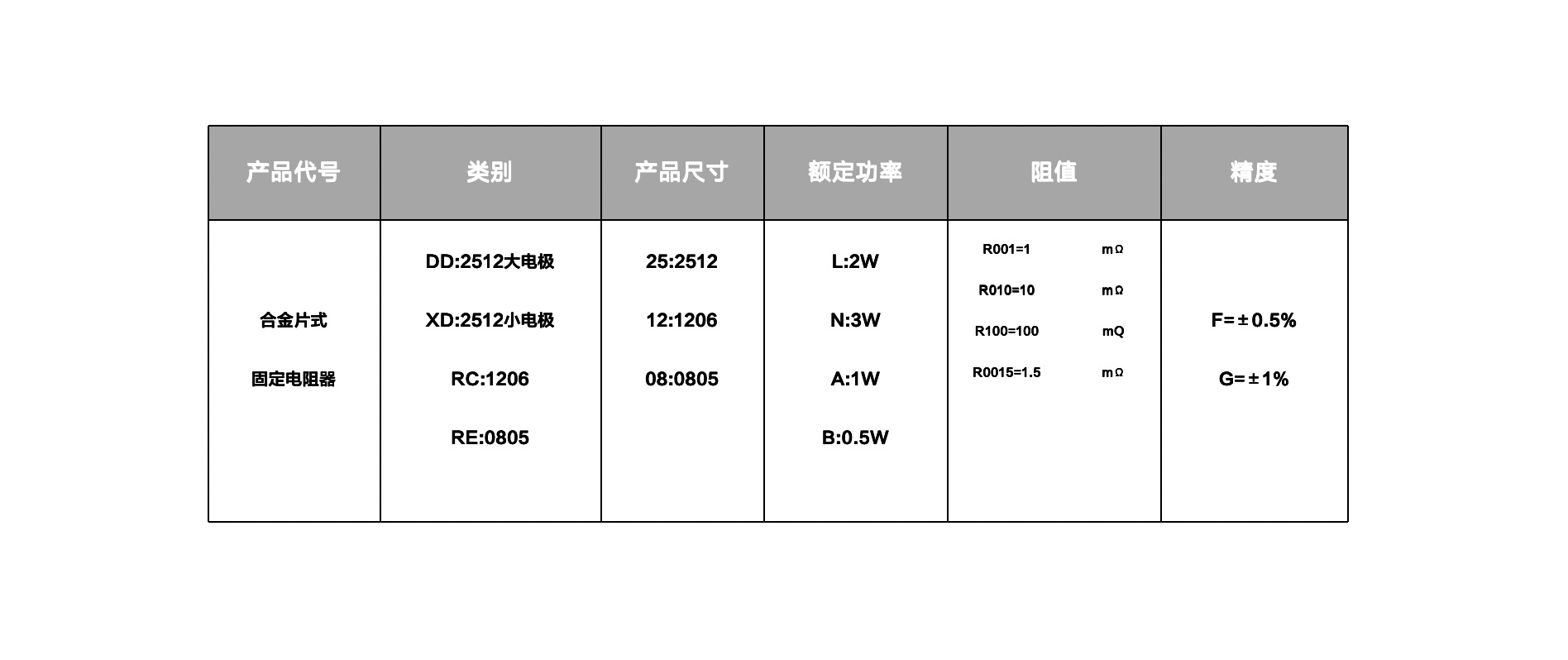

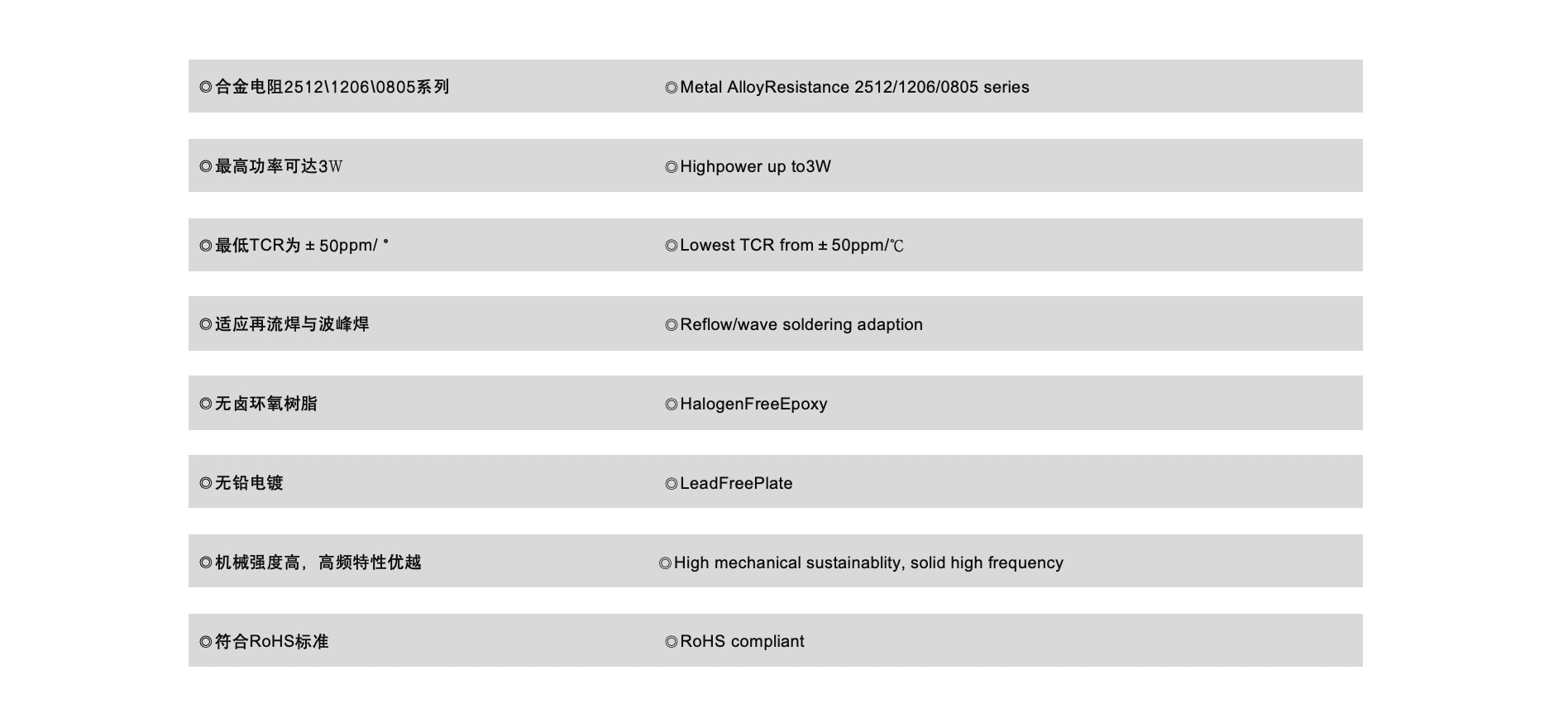

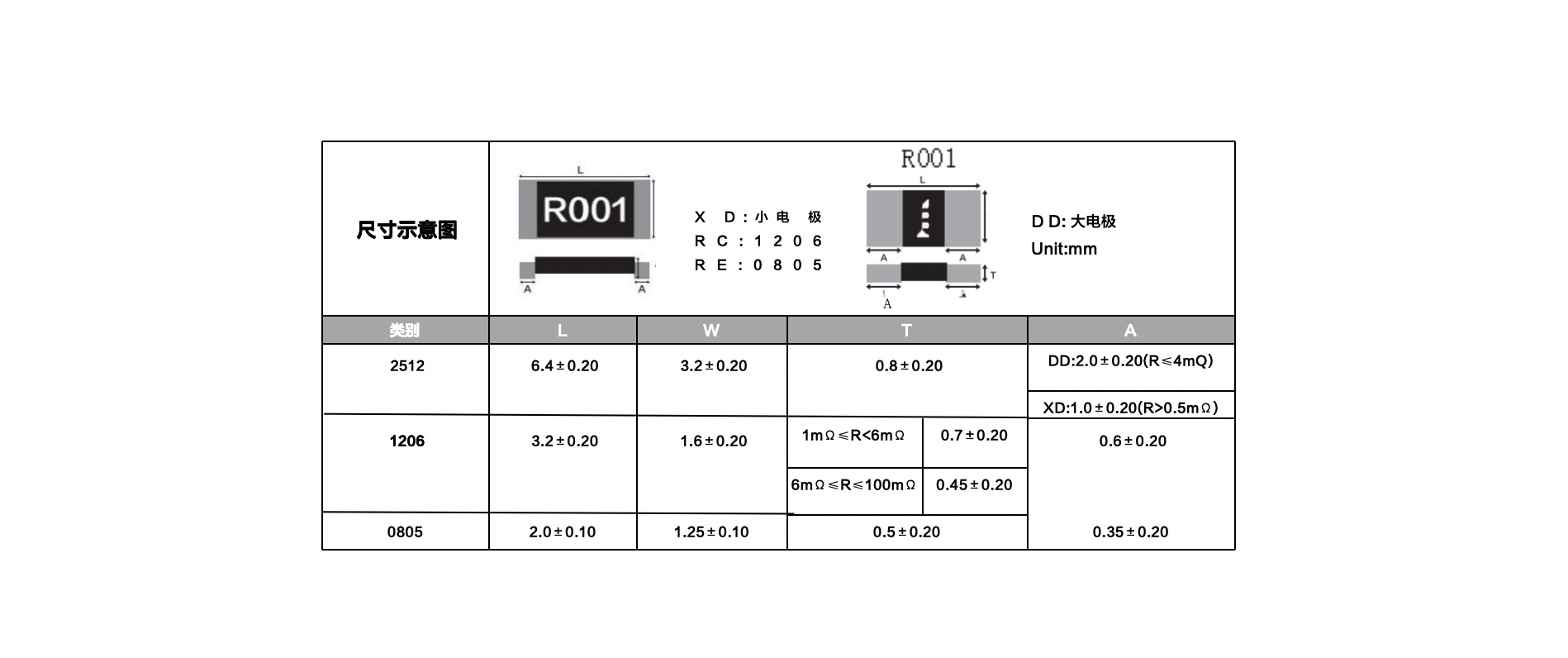

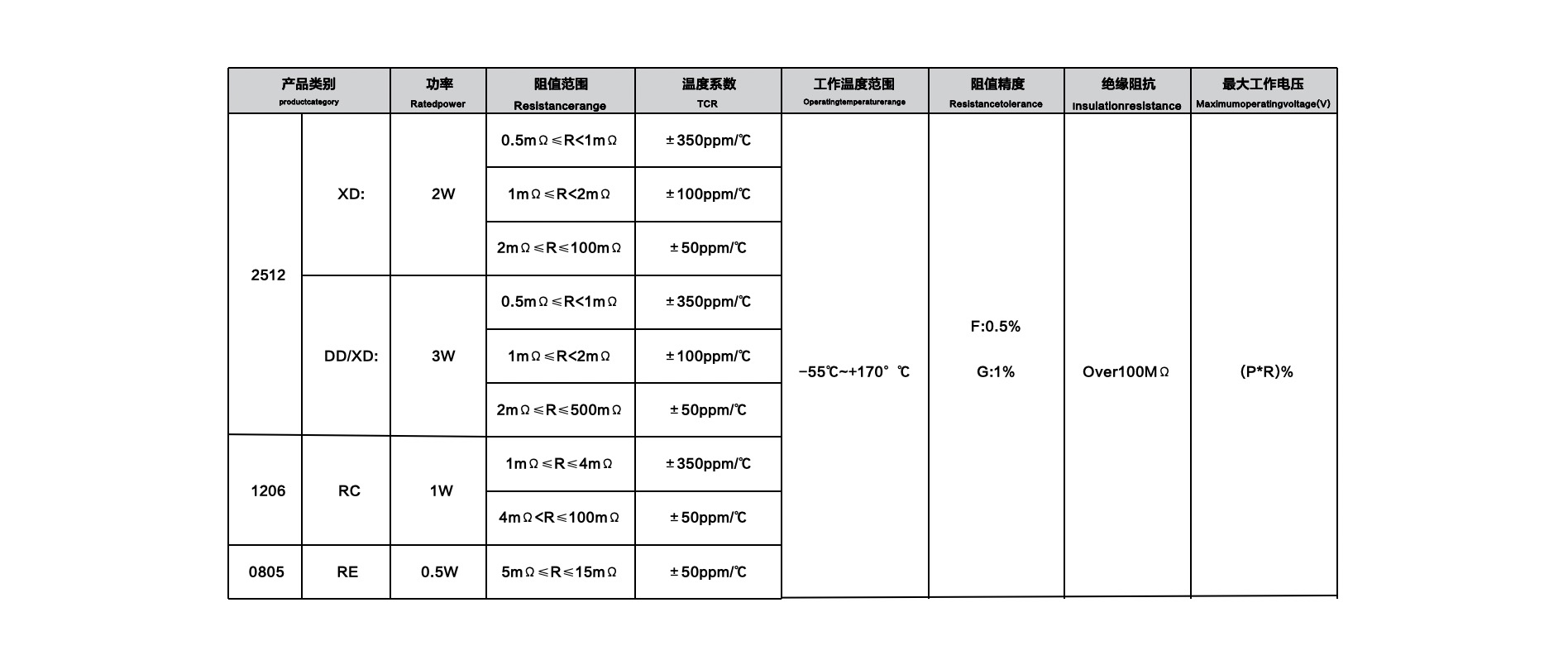

产品规格

应用领域

成功案例

工艺流程

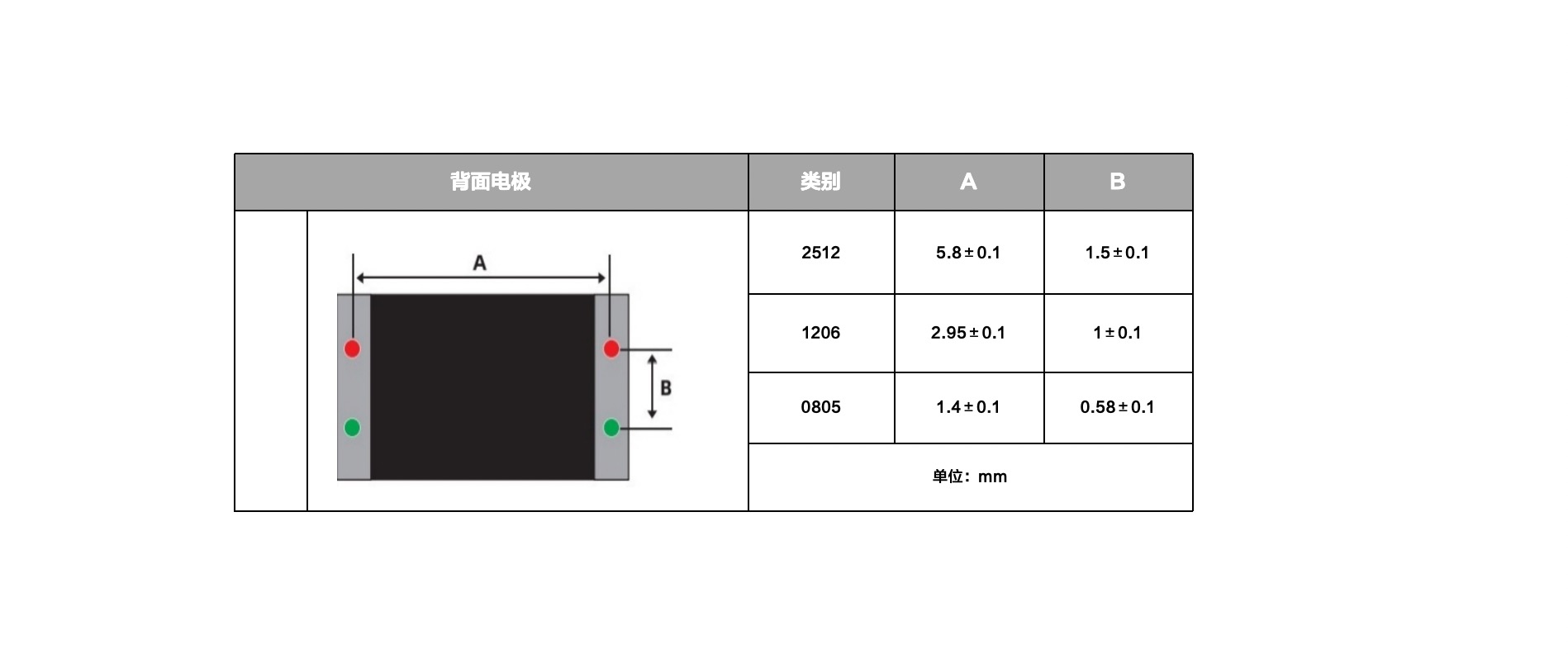

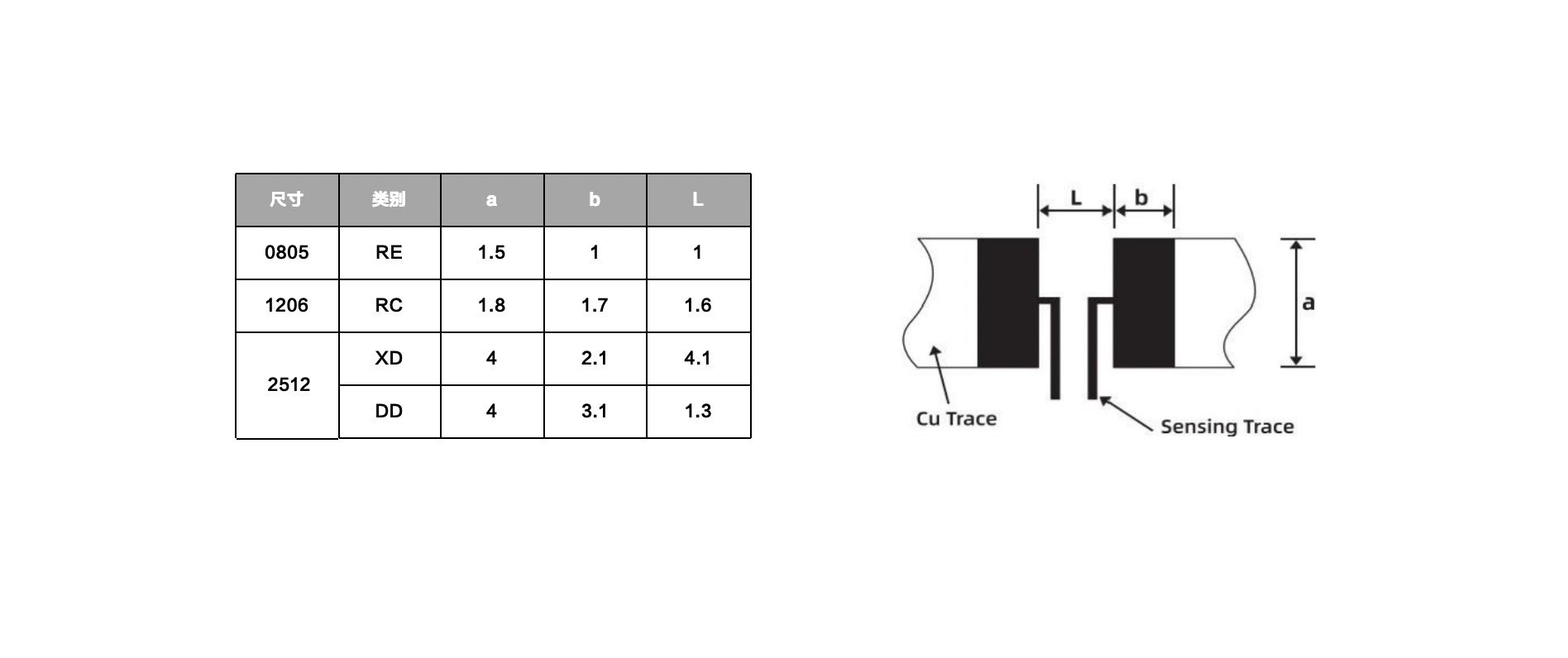

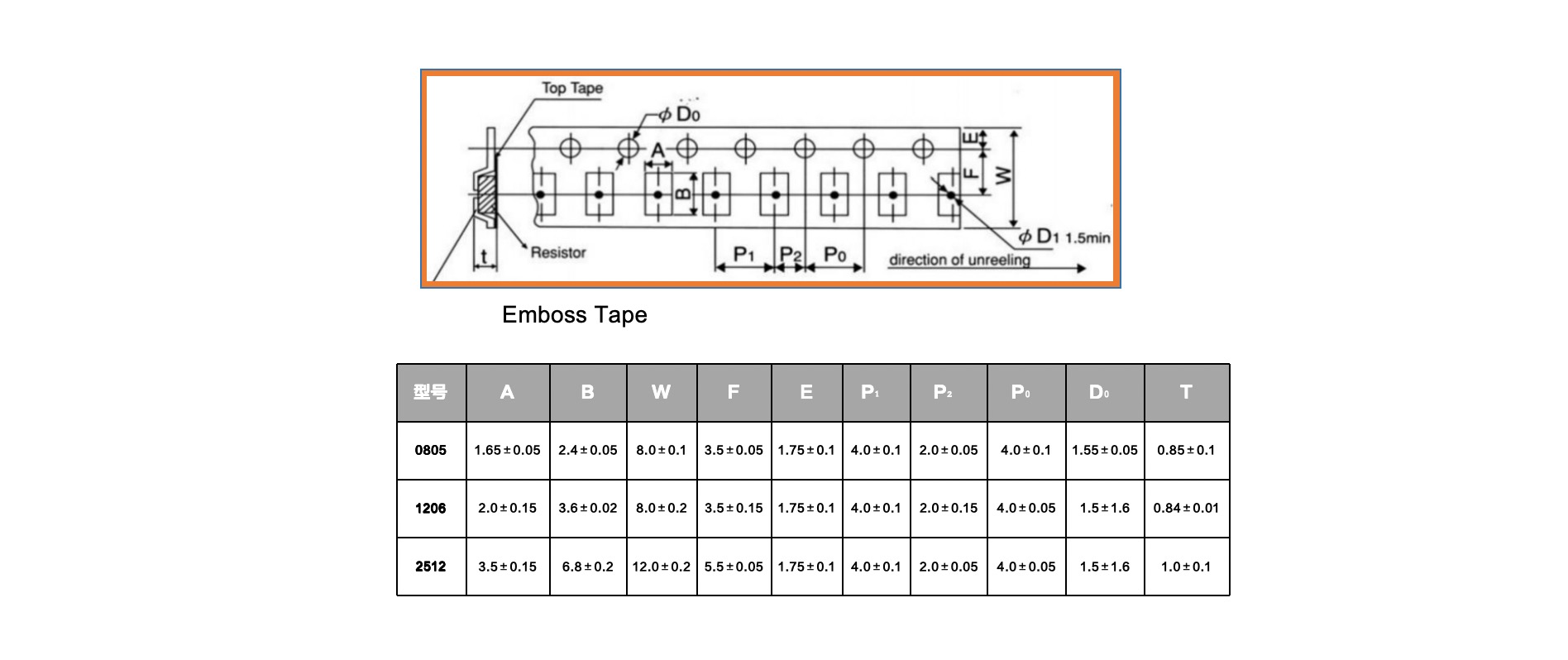

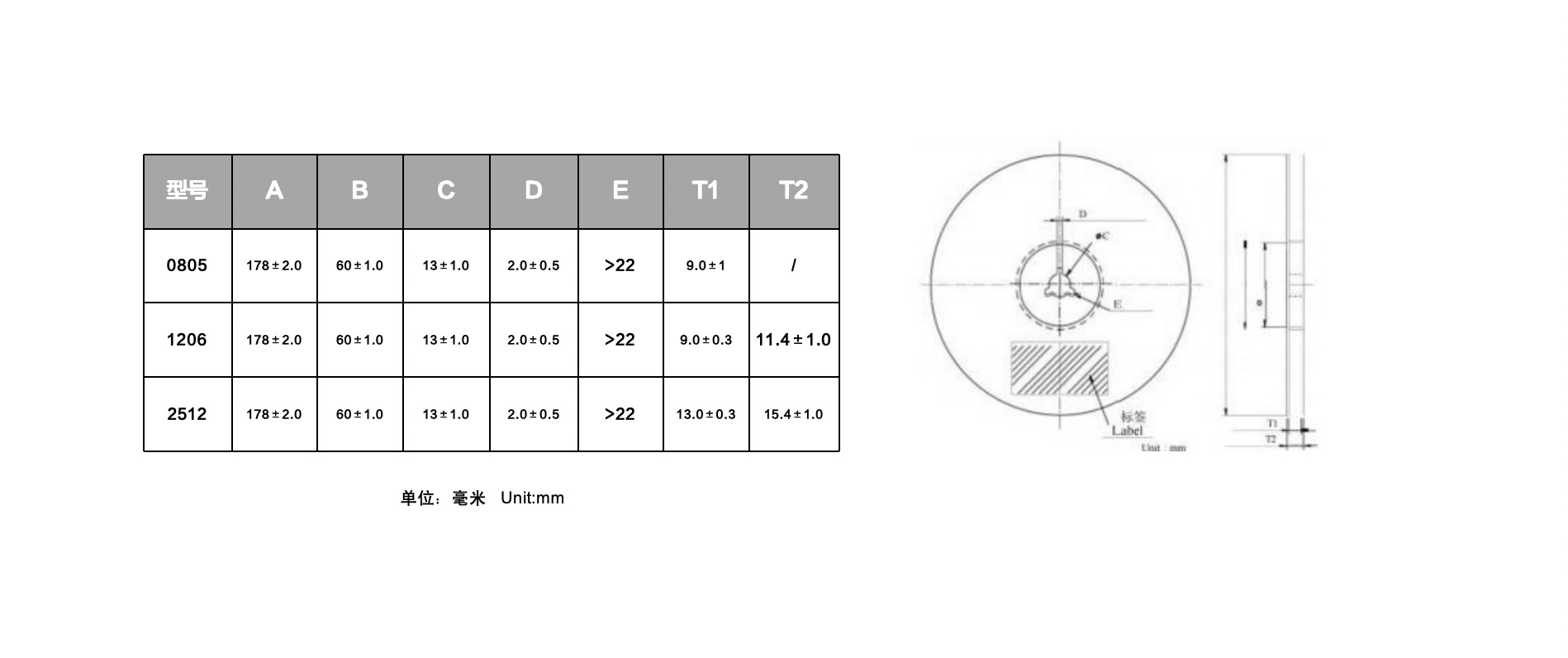

产品规格

适用范围 scope

应用领域

成功案例

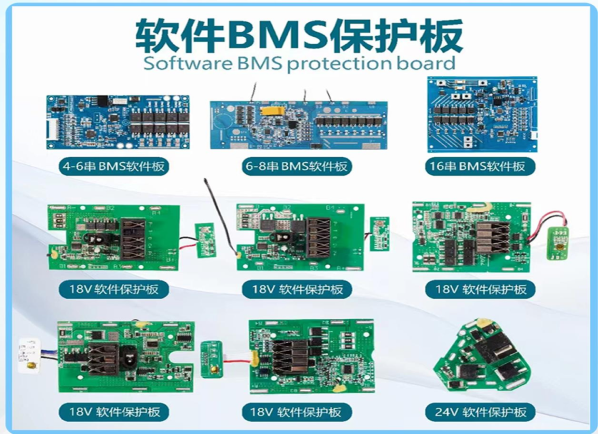

保护板

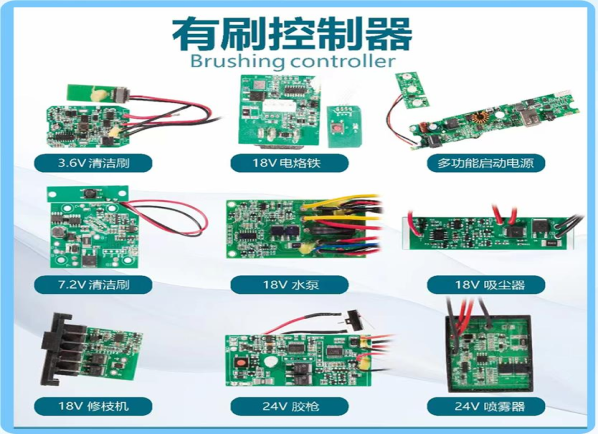

有刷控制器

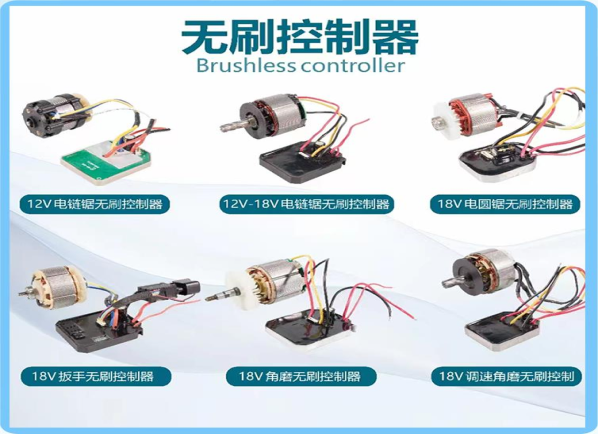

无刷控制器

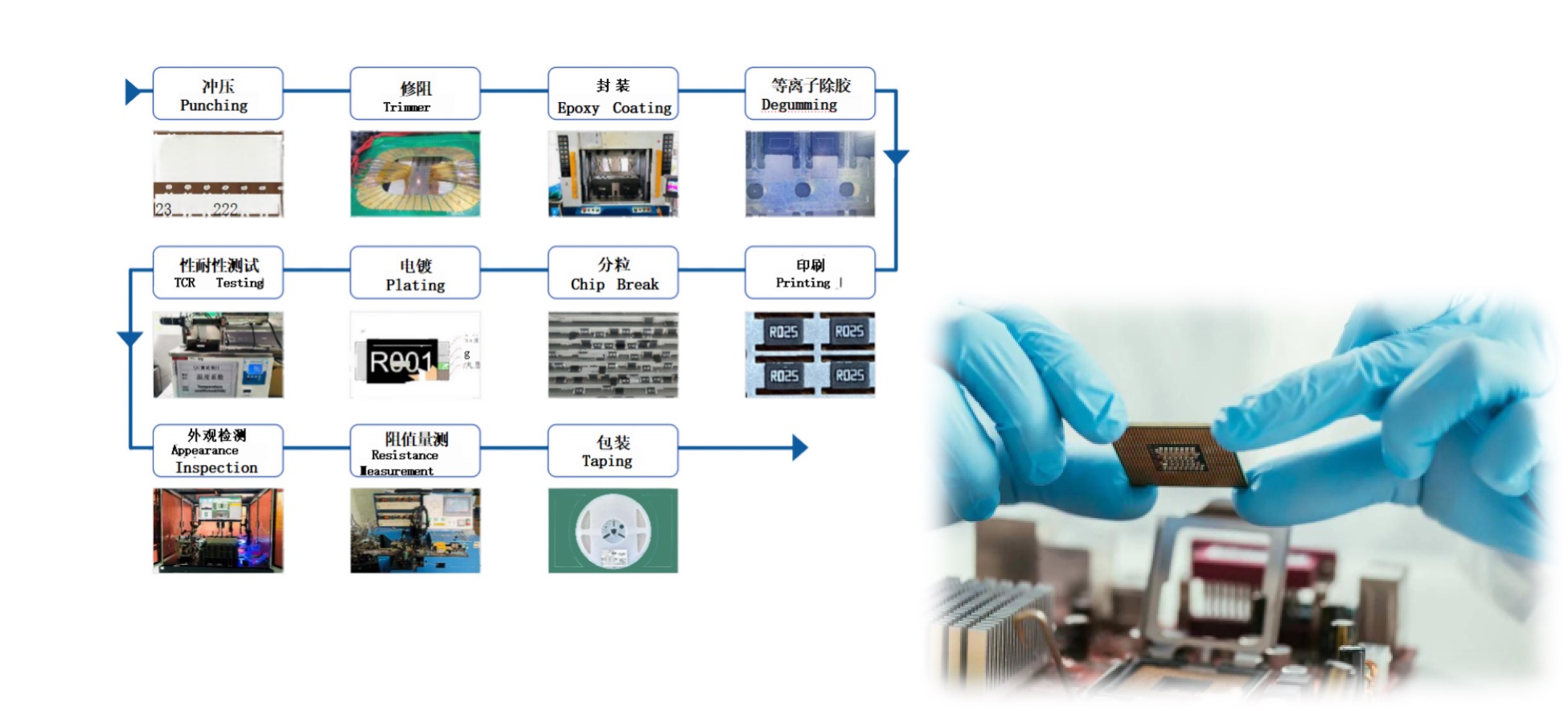

工艺流程
